| الاسم التجاري: | LAMBOSS |
| رقم الطراز: | 1 |
| الـ MOQ: | 10 قطع |
| تفاصيل التعبئة: | صندوق ورقي منفصل |
| شروط الدفع: | تي / تي ، ويسترن يونيون ، موني جرام |

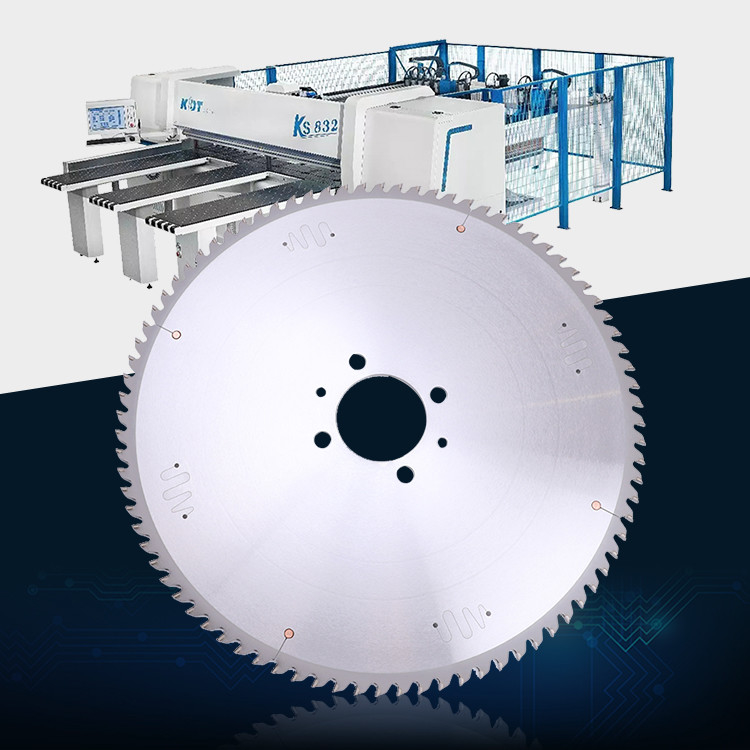

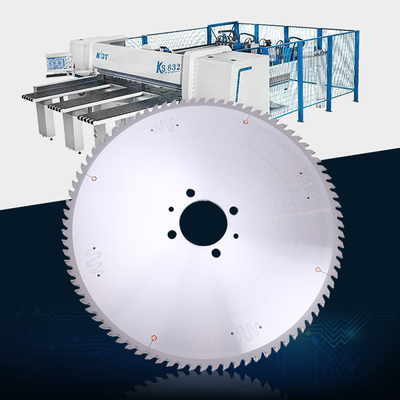

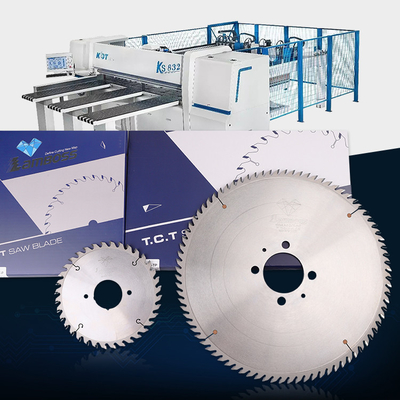

LAMBOSS شفرات منشار دائري من الدرجة الصناعية TCT لقطع الألواح الخشبية والمركبات
وصف المنتج:
| خشب | خشب صلب ناعم ، صلب وغريب ، لوح خشب مضغوط ، مركبات خشبية بلاستيكية حرارية ، MDF مصفح من جانب واحد |
| خدمة | خدمة ما بعد البيع |
| الآلات | المناشير الدائرية ، ماكينات تحجيم الألواح العمودية ، ماكينات الحماية |
| ف & د | شركة المنشار يونغتاى المحدودة |
|
طَرد |
صندوق ألومنيوم منفصل بالإضافة إلى غطاء بلاستيكي |
| عينة | متوفرة |
تفاصيل سريعة:
1. للقطع العرضي
2. لدينا مخزون منتظم من قطر 300mm إلى 450mm
3. عمر أسنان الماس PCD أطول ولكن ليس حاد مثل شفرات المنشار TCT
4. الرتبة الصناعية
5.يمكن تخصيصها لقطر 800 مم
مزايا:
1. مستقرة
2. تقليل الضوضاء
3. سطح أملس
4. استخدام الوقت أطول بكثير
5. فعالة من حيث التكلفة
تحديد:
| د (مم) | ب (مم) | ب (مم) | د (مم) | ض | α | نوع T. | ثقب تحديد المواقع |
| 300 | 4.0 | 3.0 | 30 | 60 | 15 | TP | |
| 300 | 4.0 | 3.0 | 30 | 72 | 15 | TP | |
| 300 | 4.0 | 3.0 | 80 | 72 | 15 | TP | |
| 300 | 4.0 | 3.0 | 30 | 96 | 15 | TP | 2/15/110 + 4/9/100 |
| 300 | 4.0 | 3.0 | 75 | 96 | 15 | TP | |
| 300 | 4.4 | 3.2 | 30 | 60 | 15 | TP | |
| 300 | 4.4 | 3.2 | 80 | 60 | 15 | TP | |
| 300 | 4.4 | 3.2 | 30 | 72 | 15 | TP | 2/15/110 + 4/9/100 |
| 300 | 4.4 | 3.2 | 80 | 72 | 15 | TP | |
| 300 | 4.4 | 3.2 | 30 | 96 | 15 | TP | 2/15/110 + 4/9/100 |
| 300 | 4.4 | 3.2 | 75 | 96 | 15 | TP | |
| 300 | 4.4 | 3.2 | 80 | 96 | 15 | TP | |
| 350 | 4.0 | 3.0 | 30 | 72 | 15 | TP | |
| 350 | 4.0 | 3.0 | 60 | 72 | 15 | TP | |
| 350 | 4.4 | 3.2 | 25.4 | 72 | 15 | TP | 15/2/100 |
| 350 | 4.4 | 3.2 | 30 | 72 | 15 | TP | |
| 350 | 4.4 | 3.2 | 60 | 72 | 15 | TP | |
| 350 | 4.4 | 3.2 | 75 | 72 | 15 | TP | 15/2/100 |
| 350 | 4.4 | 3.2 | 80 | 72 | 15 | TP | 4/15/105 |
| 350 | 4.0 | 3.0 | 30 | 84 | 15 | TP | 4/9/100 + 2/9/110 + 2/15/110 |
| 350 | 4.0 | 3.0 | 60 | 84 | 15 | TP | 15/2/100 |
| 350 | 4.4 | 3.2 | 25.4 | 84 | 15 | TP | |
| 350 | 4.4 | 3.2 | 30 | 84 | 15 | TP | |
| 350 | 4.4 | 3.2 | 60 | 84 | 15 | TP | 15/2/100 |
| 350 | 4.4 | 3.2 | 75 | 84 | 15 | TP | 4/15/105 |
| 350 | 4.4 | 3.2 | 80 | 84 | 15 | TP | 4/9/100 + 2/9/110 + 2/15/110 |
| 350 | 4.4 | 3.2 | 25.4 | 96 | 15 | TP | |
| 350 | 4.4 | 3.2 | 30 | 96 | 15 | TP | |
| 350 | 4.4 | 3.2 | 60 | 96 | 15 | TP | 4/15/100 |
| 350 | 4.4 | 3.2 | 75 | 96 | 15 | TP | 4/15/105 |
| 350 | 4.4 | 3.2 | 80 | 96 | 15 | TP | 4/9/100 + 2/9/110 + 2/15/110 |
| 380 | 4.4 | 3.2 | 30 | 72 | 15 | TP | |
| 380 | 4.4 | 3.2 | 60 | 72 | 15 | TP | 15/2/100 |
| 380 | 4.4 | 3.2 | 75 | 72 | 15 | TP | 4/15/105 |
| 380 | 4.4 | 3.2 | 80 | 72 | 15 | TP | 4/9/100 + 2/9/110 + 2/15/110 |
| 380 | 4.4 | 3.2 | 30 | 84 | 15 | TP | |
| 380 | 4.4 | 3.2 | 60 | 84 | 15 | TP | 15/2/100 |
| 380 | 4.4 | 3.2 | 80 | 84 | 15 | TP | 4/9/100 + 2/9/110 + 2/15/110 |
| 380 | 4.4 | 3.2 | 30 | 96 | 15 | TP | |
| 380 | 4.4 | 3.2 | 60 | 96 | 15 | TP | 15/2/100 |
| 380 | 4.4 | 3.2 | 75 | 96 | 15 | TP | 4/15/105 |
| 380 | 4.4 | 3.2 | 80 | 96 | 15 | TP | 4/9/100 + 2/9/110 + 2/15/110 |
| 380 | 4.8 | 3.6 | 60 | 72 | 15 | TP | 15/2/100 |
| 380 | 4.8 | 3.6 | 80 | 72 | 15 | TP | 4/9/100 + 2/9/110 + 2/15/110 |
| 380 | 4.8 | 3.6 | 60 | 84 | 15 | TP | 15/2/100 |
| 380 | 4.8 | 3.6 | 80 | 84 | 15 | TP | 4/9/100 + 2/9/110 + 2/15/110 |
| 380 | 4.8 | 3.6 | 60 | 96 | 15 | TP | 15/2/100 |
| 380 | 4.8 | 3.6 | 80 | 96 | 15 | TP | 4/9/100 + 2/9/110 + 2/15/110 |
| 400 | 4.4 | 3.2 | 30 | 72 | 15 | TP | |
| 400 | 4.4 | 3.2 | 60 | 72 | 15 | TP | 15/2/100 |
| 400 | 4.4 | 3.2 | 75 | 72 | 15 | TP | 4/15/105 |
| 400 | 4.4 | 3.2 | 80 | 72 | 15 | TP | 4/19/120 + 2/9/130 |
| 400 | 4.4 | 3.2 | 30 | 84 | 15 | TP | |
| 400 | 4.4 | 3.2 | 60 | 84 | 15 | TP | 15/2/100 |
| 400 | 4.4 | 3.2 | 75 | 84 | 15 | TP | 4/15/105 |
| 400 | 4.4 | 3.2 | 80 | 84 | 15 | TP | 4/19/120 + 2/9/130 |
| 400 | 4.4 | 3.2 | 60 | 96 | 15 | TP | 15/2/100 |
| 400 | 4.4 | 3.2 | 75 | 96 | 15 | TP | 4/15/105 |
| 400 | 4.4 | 3.2 | 80 | 96 | 15 | TP | 4/19/120 + 2/9/130 |
| 400 | 4.8 | 3.6 | 60 | 72 | 15 | TP | 2/15/100 + 2/15/125 |
| 400 | 4.8 | 3.6 | 75 | 72 | 15 | TP | 4/15/105 |
| 400 | 4.8 | 3.6 | 60 | 84 | 15 | TP | 2/15/100 + 2/15/125 |
| 430 | 4.4 | 3.2 | 80 | 72 | 15 | TP | 4/19/120 + 2/9/130 |
| 430 | 4.4 | 3.2 | 75 | 96 | 15 | TP | 4/15/105 |
| 430 | 4.8 | 3.6 | 75 | 96 | 15 | TP | 4/15/105 |
| 430 | 4.8 | 3.6 | 80 | 96 | 15 | TP | 4/19/120 + 2/9/130 |
| 450 | 4.4 | 3.2 | 30 | 72 | 15 | TP | 2/13/94 |
| 450 | 4.4 | 3.2 | 60 | 72 | 15 | TP | 2/10/80 + 2/15/125 |
| 450 | 4.4 | 3.2 | 80 | 72 | 15 | TP | 2/9/130 + 4/19/120 |
| 450 | 4.4 | 3.2 | 60 | 84 | 15 | TP | 2/10/80 + 2/15/125 |
| 450 | 4.4 | 3.2 | 75 | 84 | 15 | TP | 4/15/105 |
| 450 | 4.4 | 3.2 | 80 | 84 | 15 | TP | 2/9/130 + 4/19/120 |
| 450 | 4.8 | 3.6 | 30 | 72 | 15 | TP | 2/13/94 |
| 450 | 4.8 | 3.6 | 60 | 72 | 15 | TP | 2/10/80 + 2/15/125 |
| 450 | 4.8 | 3.6 | 80 | 72 | 15 | TP | 2/9/130 + 4/19/120 |
| 450 | 4.8 | 3.6 | 60 | 84 | 15 | TP | 2/10/80 + 2/15/125 |
| 450 | 4.8 | 3.6 | 80 | 84 | 15 | TP | 2/9/130 + 4/19/120 |
| 450 | 4.8 | 3.6 | 60 | 96 | 15 | TP | 2/10/80 + 2/15/125 |
| 450 | 4.8 | 3.6 | 80 | 96 | 15 | TP | 2/9/130 + 4/19/120 |
| 480 | 4.8 | 3.6 | 60 | 72 | 15 | TP | 2/11/115 + 2/19/120 |
| 480 | 4.8 | 3.6 | 80 | 72 | 15 | TP | 2/9/130 + 4/19/120 |
| 480 | 4.8 | 3.6 | 60 | 84 | 15 | TP | 2/11/115 + 2/19/120 |
| 480 | 4.8 | 3.6 | 80 | 84 | 15 | TP | 2/9/130 + 4/19/120 |
| 500 | 4.8 | 3.6 | 60 | 72 | 15 | TP | 2/11/115 |
| 500 | 4.8 | 3.6 | 60 | 84 | 15 | TP | 2/11/115 |
| 520 | 4.8 | 3.6 | 30 | 72 | 15 | TP | 2/13/94 |
| 520 | 4.8 | 3.6 | 60 | 72 | 15 | TP | 2/11/115 + 2/19/120 |
| 520 | 4.8 | 3.6 | 60 | 84 | 15 | TP | 2/11/115 + 2/19/120 |
| 600 | 5.8 | 4.0 | 60 | 60 | 15 | TP | 2/11/115 + 2/19/120 |
| 600 | 5.8 | 4.0 | 60 | 72 | 15 | TP | 2/11/115 + 2/19/120 |
| 730 | 7.0 | 5.2 | 80 | 70 | 18 | TP | 17/2/110 |
|
