| الاسم التجاري: | LAMBOSS |
| رقم الطراز: | 1 |
| الـ MOQ: | 10 قطع |
| تفاصيل التعبئة: | صندوق ورقي منفصل |
| شروط الدفع: | تي / تي ، ويسترن يونيون ، موني جرام |

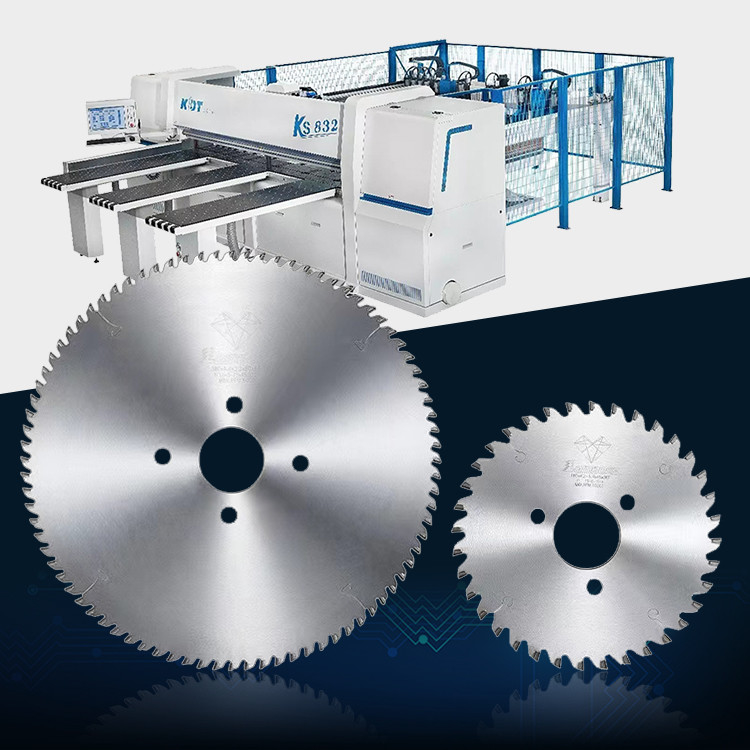

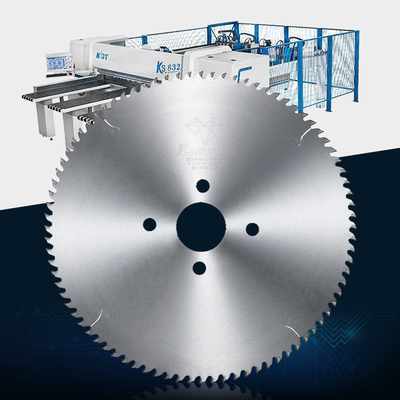

شفرات منشار دائري ماسي PCD من LAMBOSS الصناعي لقطع الألواح الخشبية والمركبات
وصف المنتج:
| خشب | خشب صلب ناعم ، صلب وغريب ، لوح خشب مضغوط ، مركبات خشبية بلاستيكية حرارية ، MDF مصفح من جانب واحد |
| خدمة | خدمة ما بعد البيع |
| الآلات | المناشير الدائرية ، ماكينات تحجيم الألواح العمودية ، ماكينات الحماية |
| ف & د | شركة المنشار يونغتاى المحدودة |
|
طَرد |
صندوق ألومنيوم منفصل بالإضافة إلى غطاء بلاستيكي |
| عينة | متوفرة |
تفاصيل سريعة:
1. للقطع العرضي
2. لدينا مخزون منتظم من 350mm ، 450mm قطر
3. عمر أسنان الماس PCD أطول ولكن ليس حاد مثل شفرات المنشار TCT
4. الرتبة الصناعية
5.قطر 300 مم إلى قطر 800 مم
مزايا:
1. مستقرة
2. تقليل الضوضاء
3. سطح أملس
4. استخدام الوقت أطول بكثير
5. فعالة من حيث التكلفة
تحديد:
| د (مم) | ب (مم) | ب (مم) | د (مم) | ض | α | نوع T. | ثقب تحديد المواقع |
| 300 | 4.0 | 3.0 | 30 | 60 | 15 | TP | |
| 300 | 4.0 | 3.0 | 30 | 72 | 15 | TP | |
| 300 | 4.0 | 3.0 | 80 | 72 | 15 | TP | |
| 300 | 4.0 | 3.0 | 30 | 96 | 15 | TP | 2/15/110 + 4/9/100 |
| 300 | 4.0 | 3.0 | 75 | 96 | 15 | TP | |
| 300 | 4.4 | 3.2 | 30 | 60 | 15 | TP | |
| 300 | 4.4 | 3.2 | 80 | 60 | 15 | TP | |
| 300 | 4.4 | 3.2 | 30 | 72 | 15 | TP | 2/15/110 + 4/9/100 |
| 300 | 4.4 | 3.2 | 80 | 72 | 15 | TP | |
| 300 | 4.4 | 3.2 | 30 | 96 | 15 | TP | 2/15/110 + 4/9/100 |
| 300 | 4.4 | 3.2 | 75 | 96 | 15 | TP | |
| 300 | 4.4 | 3.2 | 80 | 96 | 15 | TP | |
| 350 | 4.0 | 3.0 | 30 | 72 | 15 | TP | |
| 350 | 4.0 | 3.0 | 60 | 72 | 15 | TP | |
| 350 | 4.4 | 3.2 | 25.4 | 72 | 15 | TP | 15/2/100 |
| 350 | 4.4 | 3.2 | 30 | 72 | 15 | TP | |
| 350 | 4.4 | 3.2 | 60 | 72 | 15 | TP | |
| 350 | 4.4 | 3.2 | 75 | 72 | 15 | TP | 15/2/100 |
| 350 | 4.4 | 3.2 | 80 | 72 | 15 | TP | 4/15/105 |
| 350 | 4.0 | 3.0 | 30 | 84 | 15 | TP | 4/9/100 + 2/9/110 + 2/15/110 |
| 350 | 4.0 | 3.0 | 60 | 84 | 15 | TP | 15/2/100 |
| 350 | 4.4 | 3.2 | 25.4 | 84 | 15 | TP | |
| 350 | 4.4 | 3.2 | 30 | 84 | 15 | TP | |
| 350 | 4.4 | 3.2 | 60 | 84 | 15 | TP | 15/2/100 |
| 350 | 4.4 | 3.2 | 75 | 84 | 15 | TP | 4/15/105 |
| 350 | 4.4 | 3.2 | 80 | 84 | 15 | TP | 4/9/100 + 2/9/110 + 2/15/110 |
| 350 | 4.4 | 3.2 | 25.4 | 96 | 15 | TP | |
| 350 | 4.4 | 3.2 | 30 | 96 | 15 | TP | |
| 350 | 4.4 | 3.2 | 60 | 96 | 15 | TP | 4/15/100 |
| 350 | 4.4 | 3.2 | 75 | 96 | 15 | TP | 4/15/105 |
| 350 | 4.4 | 3.2 | 80 | 96 | 15 | TP | 4/9/100 + 2/9/110 + 2/15/110 |
| 380 | 4.4 | 3.2 | 30 | 72 | 15 | TP | |
| 380 | 4.4 | 3.2 | 60 | 72 | 15 | TP | 15/2/100 |
| 380 | 4.4 | 3.2 | 75 | 72 | 15 | TP | 4/15/105 |
| 380 | 4.4 | 3.2 | 80 | 72 | 15 | TP | 4/9/100 + 2/9/110 + 2/15/110 |
| 380 | 4.4 | 3.2 | 30 | 84 | 15 | TP | |
| 380 | 4.4 | 3.2 | 60 | 84 | 15 | TP | 15/2/100 |
| 380 | 4.4 | 3.2 | 80 | 84 | 15 | TP | 4/9/100 + 2/9/110 + 2/15/110 |
| 380 | 4.4 | 3.2 | 30 | 96 | 15 | TP | |
| 380 | 4.4 | 3.2 | 60 | 96 | 15 | TP | 15/2/100 |
| 380 | 4.4 | 3.2 | 75 | 96 | 15 | TP | 4/15/105 |
| 380 | 4.4 | 3.2 | 80 | 96 | 15 | TP | 4/9/100 + 2/9/110 + 2/15/110 |
| 380 | 4.8 | 3.6 | 60 | 72 | 15 | TP | 15/2/100 |
| 380 | 4.8 | 3.6 | 80 | 72 | 15 | TP | 4/9/100 + 2/9/110 + 2/15/110 |
| 380 | 4.8 | 3.6 | 60 | 84 | 15 | TP | 15/2/100 |
| 380 | 4.8 | 3.6 | 80 | 84 | 15 | TP | 4/9/100 + 2/9/110 + 2/15/110 |
| 380 | 4.8 | 3.6 | 60 | 96 | 15 | TP | 15/2/100 |
| 380 | 4.8 | 3.6 | 80 | 96 | 15 | TP | 4/9/100 + 2/9/110 + 2/15/110 |
| 400 | 4.4 | 3.2 | 30 | 72 | 15 | TP | |
| 400 | 4.4 | 3.2 | 60 | 72 | 15 | TP | 15/2/100 |
| 400 | 4.4 | 3.2 | 75 | 72 | 15 | TP | 4/15/105 |
| 400 | 4.4 | 3.2 | 80 | 72 | 15 | TP | 4/19/120 + 2/9/130 |
| 400 | 4.4 | 3.2 | 30 | 84 | 15 | TP | |
| 400 | 4.4 | 3.2 | 60 | 84 | 15 | TP | 15/2/100 |
| 400 | 4.4 | 3.2 | 75 | 84 | 15 | TP | 4/15/105 |
| 400 | 4.4 | 3.2 | 80 | 84 | 15 | TP | 4/19/120 + 2/9/130 |
| 400 | 4.4 | 3.2 | 60 | 96 | 15 | TP | 15/2/100 |
| 400 | 4.4 | 3.2 | 75 | 96 | 15 | TP | 4/15/105 |
| 400 | 4.4 | 3.2 | 80 | 96 | 15 | TP | 4/19/120 + 2/9/130 |
| 400 | 4.8 | 3.6 | 60 | 72 | 15 | TP | 2/15/100 + 2/15/125 |
| 400 | 4.8 | 3.6 | 75 | 72 | 15 | TP | 4/15/105 |
| 400 | 4.8 | 3.6 | 60 | 84 | 15 | TP | 2/15/100 + 2/15/125 |
| 430 | 4.4 | 3.2 | 80 | 72 | 15 | TP | 4/19/120 + 2/9/130 |
| 430 | 4.4 | 3.2 | 75 | 96 | 15 | TP | 4/15/105 |
| 430 | 4.8 | 3.6 | 75 | 96 | 15 | TP | 4/15/105 |
| 430 | 4.8 | 3.6 | 80 | 96 | 15 | TP | 4/19/120 + 2/9/130 |
| 450 | 4.4 | 3.2 | 30 | 72 | 15 | TP | 2/13/94 |
| 450 | 4.4 | 3.2 | 60 | 72 | 15 | TP | 2/10/80 + 2/15/125 |
| 450 | 4.4 | 3.2 | 80 | 72 | 15 | TP | 2/9/130 + 4/19/120 |
| 450 | 4.4 | 3.2 | 60 | 84 | 15 | TP | 2/10/80 + 2/15/125 |
| 450 | 4.4 | 3.2 | 75 | 84 | 15 | TP | 4/15/105 |
| 450 | 4.4 | 3.2 | 80 | 84 | 15 | TP | 2/9/130 + 4/19/120 |
| 450 | 4.8 | 3.6 | 30 | 72 | 15 | TP | 2/13/94 |
| 450 | 4.8 | 3.6 | 60 | 72 | 15 | TP | 2/10/80 + 2/15/125 |
| 450 | 4.8 | 3.6 | 80 | 72 | 15 | TP | 2/9/130 + 4/19/120 |
| 450 | 4.8 | 3.6 | 60 | 84 | 15 | TP | 2/10/80 + 2/15/125 |
| 450 | 4.8 | 3.6 | 80 | 84 | 15 | TP | 2/9/130 + 4/19/120 |
| 450 | 4.8 | 3.6 | 60 | 96 | 15 | TP | 2/10/80 + 2/15/125 |
| 450 | 4.8 | 3.6 | 80 | 96 | 15 | TP | 2/9/130 + 4/19/120 |
| 480 | 4.8 | 3.6 | 60 | 72 | 15 | TP | 2/11/115 + 2/19/120 |
| 480 | 4.8 | 3.6 | 80 | 72 | 15 | TP | 2/9/130 + 4/19/120 |
| 480 | 4.8 | 3.6 | 60 | 84 | 15 | TP | 2/11/115 + 2/19/120 |
| 480 | 4.8 | 3.6 | 80 | 84 | 15 | TP | 2/9/130 + 4/19/120 |
| 500 | 4.8 | 3.6 | 60 | 72 | 15 | TP | 2/11/115 |
| 500 | 4.8 | 3.6 | 60 | 84 | 15 | TP | 2/11/115 |
| 520 | 4.8 | 3.6 | 30 | 72 | 15 | TP | 2/13/94 |
| 520 | 4.8 | 3.6 | 60 | 72 | 15 | TP | 2/11/115 + 2/19/120 |
| 520 | 4.8 | 3.6 | 60 | 84 | 15 | TP | 2/11/115 + 2/19/120 |
| 600 | 5.8 | 4.0 | 60 | 60 | 15 | TP | 2/11/115 + 2/19/120 |
| 600 | 5.8 | 4.0 | 60 | 72 | 15 | TP | 2/11/115 + 2/19/120 |
| 730 | 7.0 | 5.2 | 80 | 70 | 18 | TP | 17/2/110 |
|
